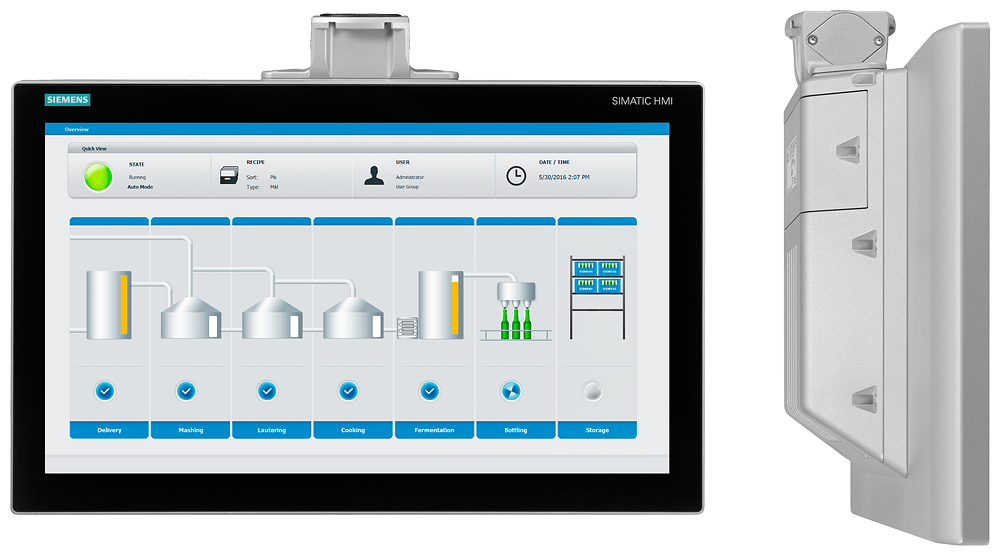

SIMATIC HMI TP1200 Comfort Pro, brazo soporte, Com (6AV2124-0MC24-0AX0)

4.803,24 IVA incluido

SIMATIC HMI TP1200 Comfort PRO, brazo soporte, Comfort Panel, operación táctil, Display 12» widescreen TFT, 16m de colores, interfaz PROFINET, interfaz MPI/PROFIBUS-DP, 24 Mb de memoria de config., WEC 2013, configurable con WinCC Comfort V14 SP1 con HSP

4 disponibles

SKU: 6AV2124-0MC24-0AX0 Categoría:

Información adicional

Supply voltage DC

19.2

Radio standard UMTS

false

Number of function buttons, programmable

0

Supporting protocol for ASI

false

With alpha numeric keyboard

true

With numeric keyboard

true

Useful project memory/user memory

12000.0

Number of pixels, horizontal

1280

Number of pixels, vertical

800

Degree of protection (IP), front side

IP65

Number of colours of the display

16777216

With colour display

true

Type of display

TFT

Screen diagonal

12.1

Radio standard GPRS

false

With recipes

true

Number of system buttons

0

Touch technology

Capacitive multitouch

With message indication

true

Suitable for safety functions

false

Wall mounting/direct mounting

false

Process default value (input) possible

true

Process value representation (output) possible

true

Radio standard GSM

false

Rail mounting possible

false

Operation temperature

0

Radio standard WLAN 802.11

false

Height of the front

226.0

Number of online languages

32

Width of the front

313.0

Additional software components, loadable

true

With message system (incl. buffer and confirmation)

true

With printer output

true

Number of password levels

50

IO link master

false

Supporting protocol for SERCOS

false

Radio standard Bluetooth

false

Supporting protocol for DeviceNet Safety

false

Supporting protocol for INTERBUS

false

With SW interfaces

false

Supporting protocol for CAN

false

Supporting protocol for PROFIBUS

true

Supporting protocol for TCP/IP

true

Number of HW-interfaces Wireless

0

Supporting protocol for KNX

false

Number of HW-interfaces parallel

0

Number of HW-interfaces USB

2

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-485

1

Number of buttons with LED

0

Number of HW-interfaces RS-422

0

Supporting protocol for INTERBUS-Safety

false

Number of interfaces PROFINET

2

Supporting protocol for MODBUS

true

Voltage type of supply voltage

DC

Supporting protocol for AS-Interface Safety at Work

false

Supporting protocol for other bus systems

true

Supporting protocol for Data-Highway

false

Supporting protocol for DeviceNet

false

Supporting protocol for Foundation Fieldbus

false

Built-in depth

101.0

Supporting protocol for PROFINET CBA

false

Supporting protocol for EtherNet/IP

true

Supporting protocol for PROFINET IO

true

Number of HW-interfaces industrial Ethernet

2

Supporting protocol for SafetyBUS p

false

Supporting protocol for PROFIsafe

false

Supporting protocol for LON

false

Supporting protocol for SUCONET

false

Código Berdin

13007237
