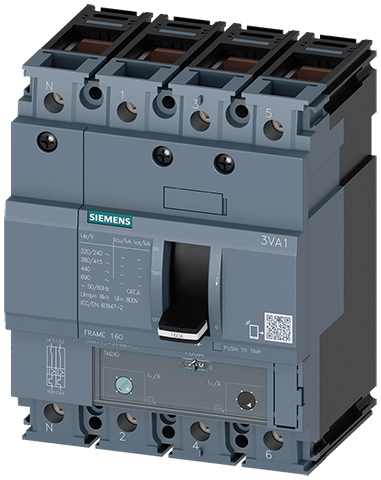

Interruptor automático 3VA1 IEC Frame 160 Clase de (3VA1120-4GF46-0AA0)

856,15 IVA incluido

INTERRUPTOR AUTOMATICO 3VA1 IEC TAMA? O 160 CLASE DE PODER DE CORTE S ICU=36KA @ 415 V 4 POLOS, PROTEC. DISTRIBUCIONES TM240, ATAM, IN=20A PROTECCION DE SOBRECARGA IR=14A …20A PROTECCION DE CORTOCIRCUITO II=5…10 X IN PROTECCION DE NEUTRO 100% CONEXION EN BORNES

Sin existencias

SKU: 3VA1120-4GF46-0AA0 Categoría:

Información adicional

Rated permanent current Iu

20.0

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

36.0

Position of connection for main current circuit

Front side

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Type of control element

Rocker lever

Complete device with protection unit

true

Motor drive integrated

false

Motor drive optional

true

Number of auxiliary contacts as change-over contact

0

DIN rail (top hat rail) mounting optional

true

Number of poles

4

Degree of protection (IP)

IP40

Suitable for DIN rail (top hat rail) mounting

true

Overload release current setting

14

Adjustment range undelayed short-circuit release

160

Rated voltage

690

Device construction

Einbaugerät Festeinbautechnik

Integrated earth fault protection

false

Código Berdin

90171736
