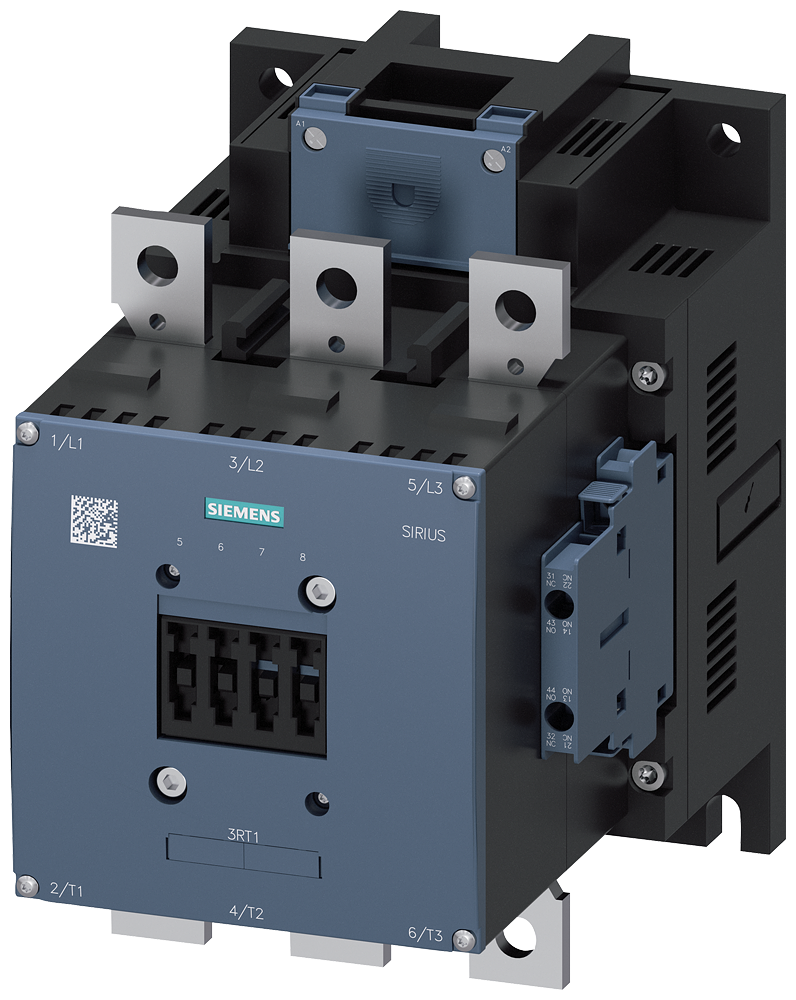

Contactor de potencia, AC-3 265 A, 132 kW/400 V AC (3RT1065-6AP36)

2.228,73 IVA incluido

SIRIUS Contactor, 132KW/400V/AC-3 accionamiento AC/DC UC 220-240V Contactos auxiliares 2NA+2NC 3 polos, tamaño S10, Conexiónes de barra accionamiento Convencional

1 disponibles

SKU: 3RT1065-6AP36 Categoría:

Información adicional

Rated control supply voltage Us at AC 50HZ

220.0

Rated operation power at AC-3, 400 V

132.0

Rated control supply voltage Us at AC 60HZ

220.0

Rated control supply voltage Us at DC

220

Voltage type for actuating

AC/DC

Number of main contacts as normally open contact

3

Modular version

true

Rated operation current Ie at AC-1, 400 V

330

Rated operation power at AC-4, 400 V

132.0

Rated operation current Ie at AC-4, 400 V

230

Rated operation power NEMA

147.09975

Rated operation current Ie at AC-3, 400 V

265

Number of auxiliary contacts as normally open contact

2

Number of auxiliary contacts as normally closed contact

2

Type of electrical connection of main circuit

Rail connection

Código Berdin

06360730
