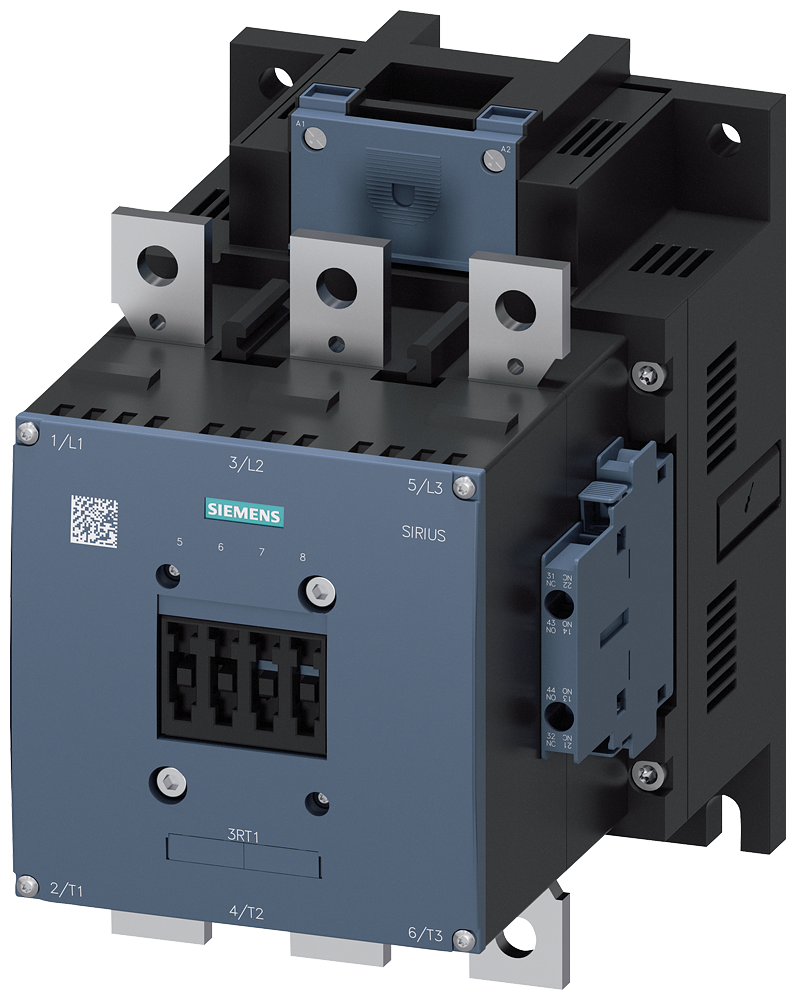

Contactor de potencia, AC-3 225 A, 110 kW/400 V AC (3RT1064-6AP36)

Name: Contactor de potencia, AC-3 225 A, 110 kW/400 V AC (3RT1064-6AP36)
SKU: 3RT1064-6AP36
Availability: OutOfStock

1.724,76€ IVA incluido

SIRIUS Contactor, 110KW/400V/AC-3 accionamiento AC/DC UC 220-240V Contactos auxiliares 2NA+2NC 3 polos, tamaño S10, Conexiónes de barra accionamiento Convencional

SKU: 3RT1064-6AP36 Categoría: INDUSTRIAL

Ficha técnica
Más información

Información adicional

Rated control supply voltage Us at AC 50HZ	220.0
Rated operation power at AC-4, 400 V	110.0
Rated control supply voltage Us at AC 60HZ	220.0
Rated control supply voltage Us at DC	220
Voltage type for actuating	AC/DC
Number of main contacts as normally open contact	3
Rated operation current Ie at AC-4, 400 V	195
Rated operation current Ie at AC-1, 400 V	275
Modular version	true
Rated operation current Ie at AC-3, 400 V	225
Rated operation power NEMA	110.3248125
Rated operation power at AC-3, 400 V	110.0
Number of auxiliary contacts as normally open contact	2
Number of auxiliary contacts as normally closed contact	2
Type of electrical connection of main circuit	Rail connection
Código Berdin	06360700
