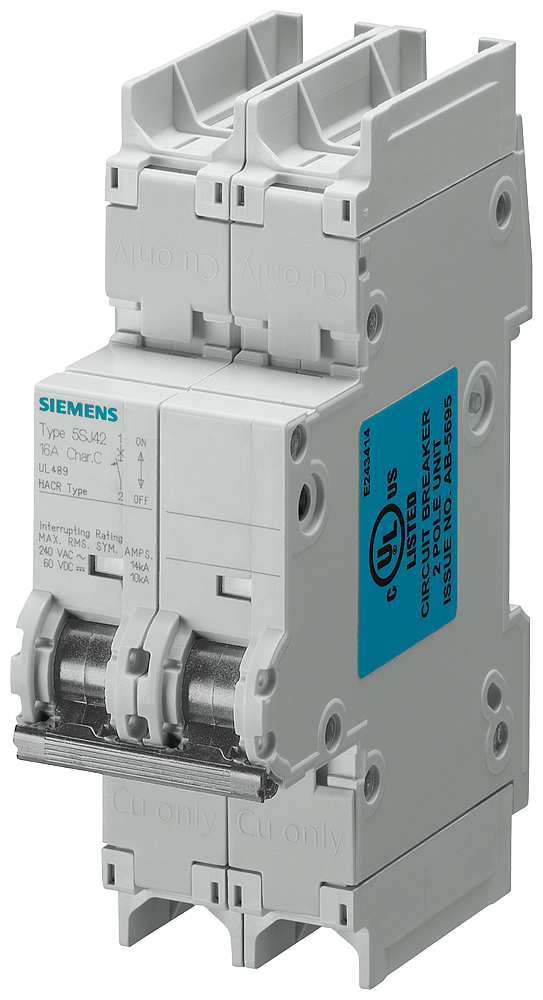

Automático magnetotérmico 240V 14 kA, 2 polos, C, (5SJ4206-7HG41)

605,32 IVA incluido

INTERR. PROTECCION SELECT. 240V 14KA, 2POLOS, C, 6A, P=70MM SEGUN UL 489

Sin existencias

SKU: 5SJ4206-7HG41 Categoría:

Información adicional

Release characteristic

C

Number of protected poles

2

Voltage type

AC/DC

Number of poles (total)

2

Degree of protection (IP)

IP20

Additional equipment possible

true

Concurrently switching N-neutral

false

Built-in depth

70.0

Width in number of modular spacings

2

Pollution degree

3

Suitable for flush-mounted installation

false

Over voltage category

3

Rated insulation voltage Ui

440

Rated current

6

Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V

15.0

Rated short-circuit breaking capacity Icn EN 60898 at 400 V

10.0

Rated voltage

400

Ambient temperature during operating

-25

Rated short-circuit breaking capacity Icn EN 60898 at 230 V

10.0

Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V

15.0

Código Berdin

90148786
